Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: 9V
  • Model Number: VFSM
  • Type: Insulator
  • Material: PE
  • Application: High Voltage
  • Rated Voltage: 600V
  • Tensile Strength: 12Mpa
  • Heat Shrink End Cap Material: Flame Retardant Polyolefin
  • End Cap Operating temperature: - 55 degree - 125 degree
  • Heat Shrink End Cap Shrink temperature: Shrink temperature
  • Heat Shrink End Cap Shrink temperature: RoHS
  • Heat Shrink End Cap Conventional Colors: Black

Packaging & Delivery

Packaging Details Standard Packaging Oppbag+Paper Carton
Delivery Time 10-25days

Specifications

Heat Shrink End Caps
Excellent dielectric strength
Good thermal endurance
Flexible,Conforms to Bends.

Heat Shrink End Caps

Product Description

Heat Shrink End Caps inner coated with hot melt adhesive providing electric insulation, satisfied sealing, water-proof and resistance to chemical corrosion and abrasion for power cables or communication cables. It can provide electric insulation, sealing, water-proof and resistan to chemical corrosion and abrasion for power cables or communication cables.

Applications

Heat Shrink End Cap is widely used for dealing with the terminal of the electric cable and telecommunication cable. It is also used for dealing with the terminal of the street lamp joint and low-pressure running cable.

Features

Heat Shrink End Cap

Material: Flame Retardant Polyolefin

Operating temperature: -55degree~100degree
Shrink temperature: Start at 85degree(adhesive reflow will occur above 85 degree), and shrink totally at 130degree. Environmental Standards:RoHS Conventional Colors:Black

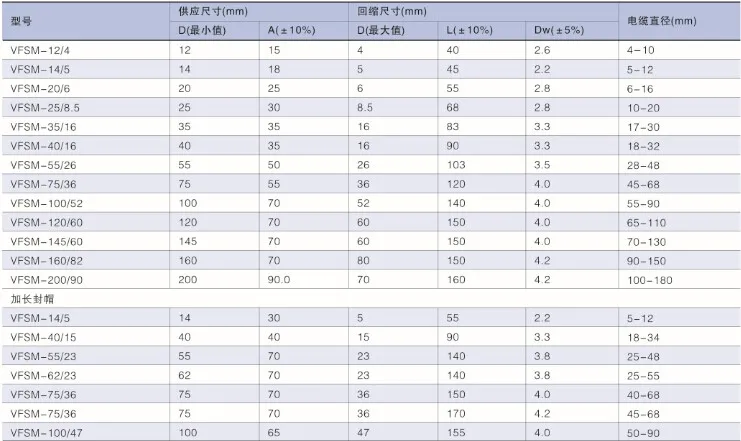

Product Sizing

P.S: Φ105/45-150 Supply/After Shrink Inner Diameter-Standard Length

        Standard Package Oppbag+Paper Carton

        Color can be order-made Red. Special Size can be order-made.

Our Services

Heat Shrink End Cap

Sample: Less than 5pcs or less than 20 USD,you just pay for the express fee.

Online Service: 7*24 hours service

Facebook :jiuwei electric

Twitter: 9vmade

Our website: jiuwei.cc

Feedback:within 24 hours,you will receive the reply and answer.

Company Information

Mainly Produces cable accessories and heat shrinkable products

Cold/Heat Shrinkable Cable Accessories Termination Kits/Joint Kits.

1kV,10kV,20kV,35kV, 25-630mm2 Cold/Heat Shrinkable Indoor/Outdoor Termaination Kits/ Straight Joint Kits

European type/American type Separable Cable Connector.

Tee Separable Connector/Elbow Connector/Deadbreak Straight Connector.Butt Splice Connector.

Wrap-around Sleeve,(Heat Shrinkable Cable Repair Sleeve ),Fiberglass Reinforced Sleeve.

RSBJ / RSBA / RSB /RSWP/ RSWJ/ RSWA / RSQA /RSDA

Heat Shrinkable Sleeve Series:Heat Shrinkable BusBar Tubing, Medium/Heavy Wall Heat Shrinkable Tubing,PVC Heat Shrinkable Sleeve, PET Heat Shrinkable Plastic Tube, Green-Yellow Heat Shrinkable casing, Heat Shrinkable Insulation Tape, End Caps, Breakout, Heat Shrinkable Bus Bar Cover ,etc more than 10 varieties and 56 series, 2000-odd specifications.

FAQ

 1.About Sample.

Less than 50USD,We won't charge you the samples fee,you Just offer your express number or pay for the express fee.

Within 2-3days normally, special products( custom-made ) maybe 7 days.

2.About Order.

Time of delivery is 15-20days based on your Qty,Special products maybe 20-25days.Jan,Feb,The before and after of Chinese New Year ,Maybe need longer time.

3.About Payment.

Payment,.First time,T/T 30% pre-payment and 70% paid off before shipment.

And if we cooperate for a long time,We can make the contract of Quarter settlement Or Haf-year settlement.

4.About Service.

Technical Support.If need Technical personnel on-site guidance,You just need pay for the traveling allowance.

If the products have quality problems,We will replacement double Qty for you with your next order.But if the problem is caused by yourself,we won't be responsible for that.

5.About Worktime.

Beijing time From 9am- 23pm * 5 .12am-1pm 6pm-8pm is out.You can leave message or email 24 hours.

SPECIAL INSTRUCTION:

If you want below 20mm,Pls choose another companies,we have not advantage;

If you want the cheaper one,pls leave us alone,we can not offer the cheaper products.

If you want the best one,pls give me a chance. we can guarantee that we can offer best not matter quality but also service.

Pls offer more info,so we can offer better service.
